The Essential Guide to Stud Welding Power Supply

When it comes to stud welding, power supply is essential. Understanding the power requirements, phases, consumption, and voltage specifics is crucial, especially when using at an offsite location. Let’s dive into the different aspects of stud welding power supply to highlight this critical component of the process.

Power Requirements For Stud Welding

Stud welding operations vary in their power requirements depending on the specific application. Generally, these welding processes demand a robust and consistent power supply to ensure precise, rapid, and durable welds. The power requirement for stud welding primarily depends on the size and material of the stud being welded. This determines the stud welding machine that is most applicable for the job.

3 Phase vs. Single Phase Power Supply

Stud welding machines can operate on both three-phase and single-phase power supplies.

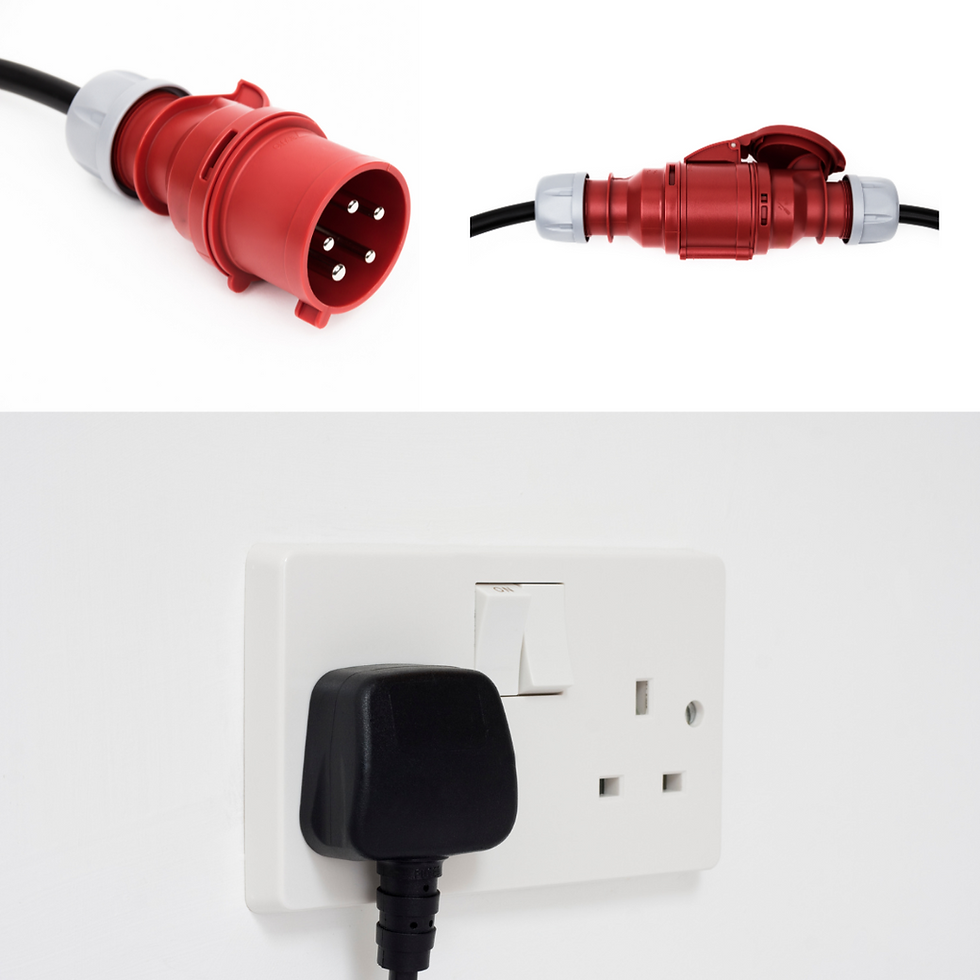

3 Phase Stud Welding: Three-phase power provides more stable and continuous power, suitable for heavy-duty industrial applications. Our Drawn Arc machines operate using a 3 phase power supply.

Single Phase Stud Welding: Single-phase power, on the other hand, is more common in smaller setups. Our Capacitor Discharge machines operate using a single phase power supply. This makes them highly suitable for offsite locations where a 3 phase power supply is not readily available.

Power Consumption Comparison

Compared to other welding types, stud welding typically consumes less power. This efficiency is owed to the swift nature of the process. Stud welding requires brief pulses of high current, reducing overall power consumption compared to continuous welding methods like MIG or TIG welding.

According to Weldmart, based on typical welding machines, this is how various welding methods’ power consumption stacks up:

Weld Rates, Amps, and Voltage in Stud Welding

The power supply unit in stud welding machines plays a pivotal role in maintaining the required current, voltage, and timing for an effective weld. These units ensure a consistent power output, crucial for achieving reliable and secure welds, especially in demanding industrial environments.

The duration of a stud weld is incredibly brief, often in the milliseconds range. Amps used during a stud weld depend on the stud size and material but typically range from hundreds to thousands. Voltage requirements are also variable, corresponding to the specific stud and base material being welded. See below a summary of Taylor Studwelding’s machines:

Stud Welding Power Supply

Stud welding’s power supply is the lifeline of a successful welding operation. Understanding the power needs, phases, consumption, and voltage requirements is pivotal for optimal performance and durable welds. Taylor Studwelding’s products have readily available technical specification sheets to assist an operator with power supply requirements.

Whether it’s a three-phase stud welding machine or single-phase stud welding machine that you require, Taylor Studwelding has a solution that will suit your needs. For further information and advice, contact our team of experts today.
